Stainless Drains for Military Facilities

Military construction follows Unified Facilities Criteria (UFC), service-specific guidance, and project specifications. Aircraft maintenance hangars, for example, are covered by UFC 4-211-01, and hangar fire protection draws on NFPA 409. Your drain choice is made inside those documents, not apart from them.

In aircraft hangars, trench drains carry sprinkler and foam discharge, contain fuel spills, and keep a spill in one bay from flowing into the next. Designers size them for fire-suppression flow and connect them to oil separators, often with bypass arrangements for foam discharge. Navy guidance also describes low-level flushing systems for ignitable-liquid fires. Criteria in this family call for trenches sized for combined sprinkler, foam, and hose-stream flow, with spacing limits, oil/water separators, and trench covers of ductile iron or steel rated for heavy loads. Stainless appears in that guidance mainly for foam strainers and foam piping, not for the trenches. A fire protection engineer designs and approves these systems. A stainless drain does not substitute for that design.

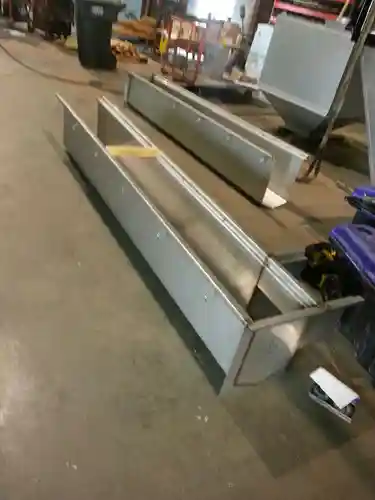

When project specifications allow, stainless-steel drains can serve sanitation-driven areas on an installation:

• Dining facilities and galleys: washdown, grease, and food solids
• Food preparation and storage areas: frequent wet cleaning
• Wash and utility areas: vehicle, equipment, and general washdown
• Medical, laboratory, and support spaces: smooth, cleanable surfaces

In these spaces, stainless steel's corrosion resistance, smooth surface, and tolerance for hot water and frequent cleaning are useful. Oil and fuel discharge usually also requires separators and local environmental compliance.

Types 304 and 316 are the grades most commonly used for wetted stainless components. Type 316 resists pitting and crevice corrosion better where chlorides are present, such as coastal installations or salt exposure. Neither grade is immune. Grade selection should reflect your climate, cleaners, and discharge.

Government projects usually require submittals, material certifications, and compliance with domestic-content and other contract clauses. Requirements differ by contract. Send us your specification section and submittal needs early, and we will tell you plainly what documentation we can provide and what we cannot. We make no specification, listing, or approval claim unless it is documented.
