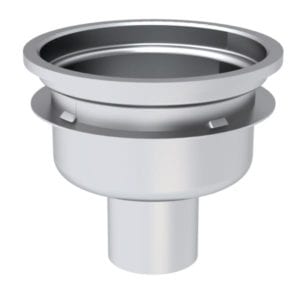

12 Inch Round Top Drain
HEAVY DUTY, TRAFFIC RATED

12 Inch Round Top Drain

Top quality engineered plumbing. Some of the largest food brands, design-build and engineering firms, and mechanical contractors have installed our drains on their projects.

Free 2026 floor drain catalog
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
TopRound 12"
MaterialT304
Outlet size4"

2" outlets are available on special request. Mention it in your notes or call 888-244-3417.

BodyStandard
Cover plateSolid

Locking covers, which secure access inside the drain, are a special-use option available on request. Mention it in your notes or call 888-244-3417.

BasketStrainer basket
P-trapNone

Attached: welded to the drain outlet, ships as one piece. Loose: ships as a separate item, to attach with a FRENCO fitting. The trap matches your outlet size and material.

Add-ons
Your configuration
Round 12" top · T304 stainless · 4" outlet · Standard body · Solid cover · Strainer basket
Part no. CD12-R-PSS4-304
Call

Standard features

Top plate

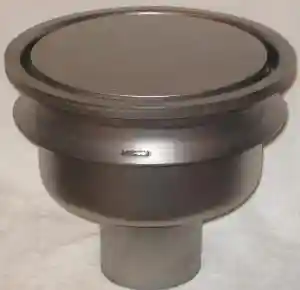

12" round with solid cover
Setting ring
12 GA, 2.5" below top plate
Outlet sizes
3" · 4" · 6" · 8" (2" on request)
Outlet pipe
4" long — Sch 10 or Sch 40
Sump depth
6.25"
Material
T304 or 316 stainless
Traffic rating
Forklift — 12,500 lbs*

*Heavy traffic in accordance with ASME A112.6.3 standards.

Basket options

Strainer basket
Strainer basket
IncludedOur standard dome-shaped T304 perforated basket with center lift handle, included with standard floor drains.
Perforated wall basket
Perforated wall basket
UpgradeHolds more solids. Fits all floor drains except low profile drains.
Slot wall basket
Slot wall basket
UpgradeUsed primarily for large debris collection.

See all drain baskets →

Drawings & documents

FD1 detail drawing — solid coverPDF Download Floor drain catalog 2026PDF Download

Need a drawing for your submittal? Request a detail drawing →

Pairs well with

Stainless P-trapsP-traps Stainless cleanoutsCleanouts Drain basketsDrain baskets

Product specification

CD12-R-PSS4-30412 x 6" deep, 12 gauge, all type 304 (CF8) stainless industrial floor drain, round top, with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped bottom sump, and pre-pour concrete stabilizing anchor ring.

Why control pathogens?

Floor drains "breathe": moving water within a drainage system creates aerosols that can rise out of drains and be carried by air currents to surrounding areas. Since pathogens can survive in drains, these aerosols can carry them up and into the production environment — so stainless steel drains must be readily accessible for routine inspection, cleaning, sanitation and environmental swabbing.

Don't let your time and money go down the drain. Built to last a lifetime.
