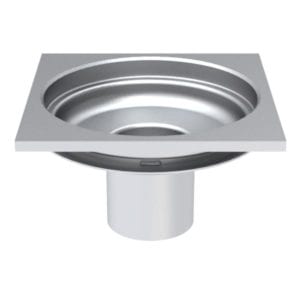

Low Profile (Shallow) Floor Drain
The drain to use where concrete depth is limited. When it comes to meeting specific depth constraints, the low profile design is the go-to choice — from commercial buildings to industrial manufacturing plants.
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
Standard features
- Top plate
- 12" × 12" square or 12" round
- Setting ring
- 12 GA, 2.5" below top plate
- Outlet sizes
- 3" · 4" · 6" · 8" (2" on request)
- Outlet pipe
- 4" long — Sch 10 or Sch 40
- Sump depth
- 2.5"
- Material
- T304 or 316 stainless
- Traffic rating
- Forklift — 12,500 lbs*
*Heavy traffic in accordance with ASME A112.6.3 standards.
Basket options
Drawings & documents
Need a drawing for your submittal? Request a detail drawing →
Pairs well with
P-traps
CleanoutsProduct specification
Other special use styles
Commercial floor drains, industrial trench drains and equipment drains all have their place. Since they are set in concrete, they are a permanent part of your infrastructure and should be installed with durability and purpose in mind.
- P-trap (welded on or separate)
- Extra deep sump basin (10")
- Floor drain with trap primer
- Membrane clamping drain for waterproofing
- Side outlet floor drain
Sanitary floor drains
Custom stainless floor drains and trench drains are the perfect choice for food processing plants where hygiene and sanitation are of the utmost concern. Fabricated in 12 GA T304 or 316L stainless steel (made in the USA) with radius corners, they are easy to clean and fully comply with sanitary standards across the world.
Floor drains are available in a wide variety of sizes with a number of top grate and cover options. Trench drains (open trough or narrow slot) are made to your specification and guaranteed to meet all sanitary equipment design principles.
More floor drains
Need a different size or outlet?
Outlets from 3" to 8" (2" on request), side outlets, locking and sealed covers — built to spec.
