Stainless Drain Trap Primer

Helps keep the p-trap water seal from drying out.

Floor Drain with Trap Primer

Sanitary Drainage Solutions


Odor + Sewer Gas Protection

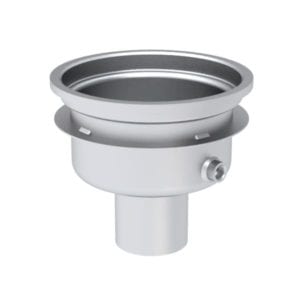

Round Top Drain with Trap Primer

Primer fitting can be placed on outlet pipe.

Trap Primer in Drain to prevent gases

Used in rooms where floors/drains are cleaned weekly or more basis.

Trap primer valves are designed to replenish evaporated water in floor drains (P-traps) to prevent sewage odor and insect infestation.A working trap primer valve on floor drains are designed to replenish evaporated water in the drain (P-traps) to prevent toxic, sewage gases and insect infestation. But, DO NOT hesitate installing them on any floor drain that isn't being used regularly.

Fabrication:
  • Top Plate: 12" (Square | Round) with Solid Cover
  • 12 Ga. Concrete Setting Ring - 2.5" Below Top Plate
  • Outlet Size - 2" | 3" | 4" | 6" | 8"
  • Outlet Pipe (4" L) - Sch 10 or Sch 40
  • Sump Body Depth - 6.25" | 10"
  • T304 Stainless

Product Specification:

CD12RTP-FD: 12 x 6" deep with Trap Primer connection, 12 gauge, all type 304 (CF8) stainless steel square industrial floor drain with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped bottom sump, and pre-pour concrete stabilizing anchor ring.


Trap Primer Flow Controls

A trap primer is a flow control valve that adds water to a P-trap to maintain a water seal, preventing sewer gases from entering a building. There are two types of trap primers (1) Pressure-Drop Trap Primer and (2) An Electronic Trap Primer. - Available from J.R. Smith Fluid Controls

Electronic Trap Primers deliver a timed injection of water to the floor drain
Single 1-4 Traps
A multi-port outlet assembly primes 4 to 36 traps
4-36 Traps
A drawing for A multi-port outlet assembly primes 4 to 36 traps
Drawing
A pressure drop-activated trap primer designed to be connected to any potable cold water line.
Pressure Drop Valve

Floor drain traps that do not connect to a water-supplied fixture will tend to evaporate. Other traps that are not periodically used or are installed in overly dry areas also will lose their seal by simple evaporation. The result of this loss allows known health hazards such as hydrogen sulfide, methane, bacteria, viruses and mold to enter the working space.


Explore more drainage solutions:

Slot Drain System

Narrow, Stainless Steel Slot Drains are effective in removing water quickly. Sanitizing is quick since there are no covers necessary for slot drains. Rated for heavy traffic.

Slot Drain | Stainless Steel
Slot Drain Manufacturer

Stainless Drain w/ P-Trap

Floor drains with P-traps are designed for the Food, Beverage, & Dairy plants. Meets all sanitary standards for USDA.

Stainless Steel Drain with P-Trap
P-traps In Stock

Brewery Floor Drains

A brewery needs to have lots of drains or trench drains to handle the large volume of discharge after cleaning the tanks. Stainless steel is the material of choice.

AN image of a Slot Drain in brewery tank aisle

Drains In-Stock

Drains are USDA approved and known as the industry standard across the United States.
