CD1212DS-FD · 304 & 316 STAINLESS — USDA SAFE

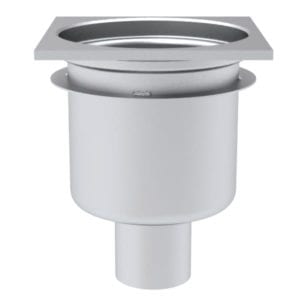

Deep Sump Floor Drain (10")
A deeper perforated basket and sump basin give debris and solids ample space to settle away from the outlet — high flow, efficient drainage for food, beverage, dairy and winery processing.
Standard features
- Top plate
- 1/2" — 12" × 12" square with solid cover
- Sump depth
- 10"
- Outlet sizes
- 2" · 3" · 4" · 6" · 8"
- Outlet pipe
- 4" long — Sch 10 or Sch 40 optional
- Setting ring
- 12 GA, 2.5" below top plate
- Basket
- Perforated stainless solid-waste basket
Drawings & documents
Need a drawing for your submittal? Request a detail drawing →
Pairs well with
P-traps
Cleanouts
Drain basketsProduct specification
CD1212DS-FD12 x 12 x 10" deep seamless sump bowl, 12 gauge, all type 304 (CF8) stainless steel square industrial floor drain with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped bottom sump, and pre-pour concrete stabilizing anchor ring.
In stock for fast-track projects
We keep a large stock of stainless drain products — trench drains, 12" drains, stainless cleanouts and P-traps — to meet the needs of fast-track construction projects. Same-day shipping is available.
