INNOVATIVE DESIGNS FOR 30+ YEARS

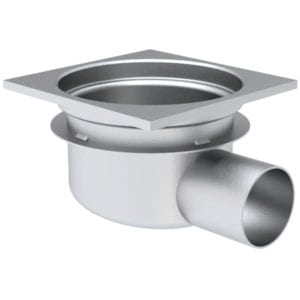

Side Outlet Square Top Drain
A side outlet lets connections be made at a right angle to the main drain line, making plumbing installations a breeze.
Free 2026 floor drain catalog
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
Standard features
- Top plate
- 12" × 12" square
- Sump depth
- 6.25"
- Outlet sizes
- 3" · 4" (2" on request)
- Outlet pipe
- 4" long — Sch 10 or Sch 40
- Setting ring
- 12 GA, 2.5" below plate
- Traffic rating
- Forklift — 12,500 lbs*
*Heavy traffic in accordance with ASME A112.6.3 standards.
Features
- 1/2" thick stainless top plate (std)
- 12 GA body — seamless spun
- Sanitary, non-corrosive and heat resistant
- USDA · FDA · CFIA approved
Basket options
Strainer basket
IncludedOur standard dome-shaped T304 perforated basket with center lift handle, included with standard floor drains.
Perforated wall basket
UpgradeHolds more solids. Fits all floor drains except low profile drains.
Slot wall basket
UpgradeUsed primarily for large debris collection.

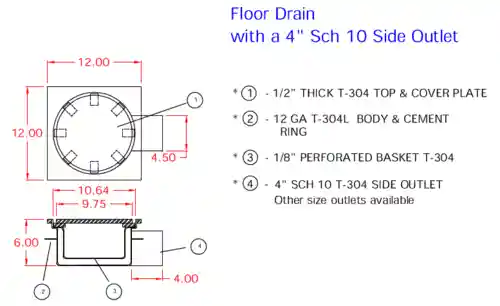

Drawings & documents
Need a drawing for your submittal? Request a detail drawing →
Pairs well with
P-traps
Cleanouts
Drain basketsProduct specification
CD12-S-PSS4-SO-30412 x 12 x 6.25" deep with Side Outlet, 12 gauge, all type 304 (CF8) stainless steel square industrial floor drain with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped bottom sump, and pre-pour concrete stabilizing anchor ring.
Why side outlets?
- Limited vertical space
- In some construction situations there may be obstructions or limited space beneath the floor, making a vertical outlet impossible. A side outlet allows for horizontal pipe connections.
- Specific plumbing configurations
- Side outlets can simplify plumbing layouts in certain applications, especially retrofit projects.
- Shallow installations
- They are very helpful in shallow installations where a traditional vertical drain would not fit.
