Square Top Floor Drain with Trap Primer

Helps prevent sewer odors & gases.

Trap Primer Fitting on Drain

Trap Priming Stainless Steel Floor Drain
Made in USA
In Stock Drains

Drainage Accessories

Contact Custom Drains Links

Commercial Stainless Drain


Safeguarding your business from harmful gases is of utmost importance, and that's where a trap primer comes to the rescue! This nifty device, also called a trap primer valve fitting, ensures that toxic gases stay far away from your food processing areas.

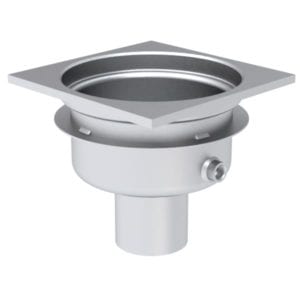

Stainless Floor Drain with Trap Primer Attachment
Trap Priming Fitting on Floor Drain

Built to Last

Specifications:

  • Top Plate Size - 12" Square
  • 12 Ga. Concrete Setting Ring - 2.5" Below Plate
  • Drain Outlet Sizes - 2" | 3" | 4" | 6" | 8"
  • Outlet Pipe - Sch 10 or Sch 40
  • Sump Body Depth - 6.25"

Benefits:

  • 1/2" Thick Stainless Top Plate (std)
  • Forklift Rated - 10,000# per ASME 112.6.3
  • 12 Ga. Body - Seamless Spun
  • Sanitary, Corrosive, and Heat Resistant
  • USDA | FDA | CFIA Approved

Build Specification:

CD12STP-FD: 12 x 12 x 6.25" deep with Trap Primer Adapter, 12 gauge, all type 304 (CF8) stainless steel square industrial floor drain with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped seamless bottom sump, and pre-pour concrete stabilizing anchor ring.

Call today for Pricing & Availability !!


Floor drain traps that do not connect to a water-supplied fixture will tend to evaporate. Other traps that are not periodically used or are installed in overly dry areas also will lose their seal by simple evaporation. The result of this loss allows known health hazards such as hydrogen sulfide, methane, bacteria, viruses and mold to enter the working space.



Trap Primer Flow Controls

A trap primer is a flow control valve that adds water to a P-trap to maintain a water seal, preventing sewer gases from entering a building. There are two types of trap primers (1) Pressure-Drop Trap Primer and (2) An Electronic Trap Primer. - Available from J.R. Smith Fluid Controls

Electronic Trap Primer
Single 1-4 Traps
multi-port outlet assembly primes 4 to 36 traps
4-36 Traps
multi-port outlet assembly drawing
Drawing
pressure drop-activated trap primer
Pressure Drop Valve

Pro Plumbing Tip:

Just like the P-trap, a trap primer is relatively simple to understand. It’s a device that adds water to your plumbing trap. That’s it. And here’s why you need it.

If liquid doesn’t go down the drain often enough, the liquid seal – the water at the bottom of the U-shaped trap — will eventually evaporate. With the "water" seal gone, sewer gas is now able to get through the drain pipe and into your processing production rooms. That’s a serious problem, and can lead to a plumbing emergency or even a health emergency and/or food product recalls.

We can also build it to Your Specs


Drains are USDA approved and known as the industry standard across the United States.
