EXTRA CAPACITY DRAIN

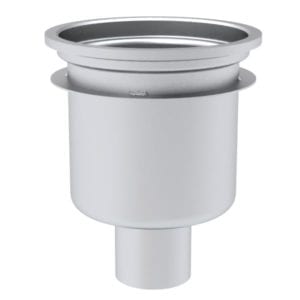

Deep Sump Round Top Drain
A deep basin floor drain handles larger volumes of liquid and debris, reducing maintenance in areas prone to high debris accumulation in food processing plants.
Free 2026 floor drain catalog
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
Every drain, cover and trap, plus the part number guide (PDF). Get the catalog
Standard features
- Top plate
- 1/2" — 12" round with solid cover
- Sump depth
- 10"
- Outlet sizes
- 3" · 4" · 6" · 8" (2" on request)
- Outlet pipe
- 4" long — Sch 10 or Sch 40
- Setting ring
- 12 GA, 2.5" below top plate
- Material
- T304 stainless (std), 316 optional
- Traffic rating
- Forklift — 12,500 lbs*
*Heavy traffic in accordance with ASME A112.6.3 standards.
Features
- 12 GA body — seamless spun
- 1/2" thick stainless top plate & cover (std)
- Sanitary, non-corrosive & heat resistant
- Built to last a lifetime
- P-trap welded on or separate
Basket options
Deep sump basket
IncludedFor 10" deep sump floor drains.
Perforated wall basket
UpgradeHolds more solids. Fits all floor drains except low profile drains.
Slot wall basket
UpgradeUsed primarily for large debris collection.
Drawings & documents
Need a drawing for your submittal? Request a detail drawing →
Pairs well with
P-traps
Cleanouts
Drain basketsProduct specification
CD12-R-DSS4-DP-30412" x 10" deep basin, 12 gauge, all type 304 (CF8) stainless steel round industrial floor drain with loose set anti-tilt extra-heavy-duty perimeter drainage cover, 1/2" top plate frame, perforated removable bucket basket with lift handle, pre-sloped bottom sump, and pre-pour concrete stabilizing anchor ring.
