Stainless Drain Drawings & Resources:

Regardless of your choice, we are here to help you with our many decades of experience.

Here is a small sample of drawings from 30+ years of supplying trench drains to the process industry.

If you have an idea, a simple sketch can transform into the answer your project needs with assistance from our design team.

Your Vision is Our Mission !!!


Below are sample drawings of Stainless Trench Drains and Slot Drains - Your Trusted source for stainless steel trench drains.
====================================


220'0" Stainless Steel Slot Drain
2 Sumps

6'0" Stainless Open Bargrate Trench
In-Line Sump with Basket

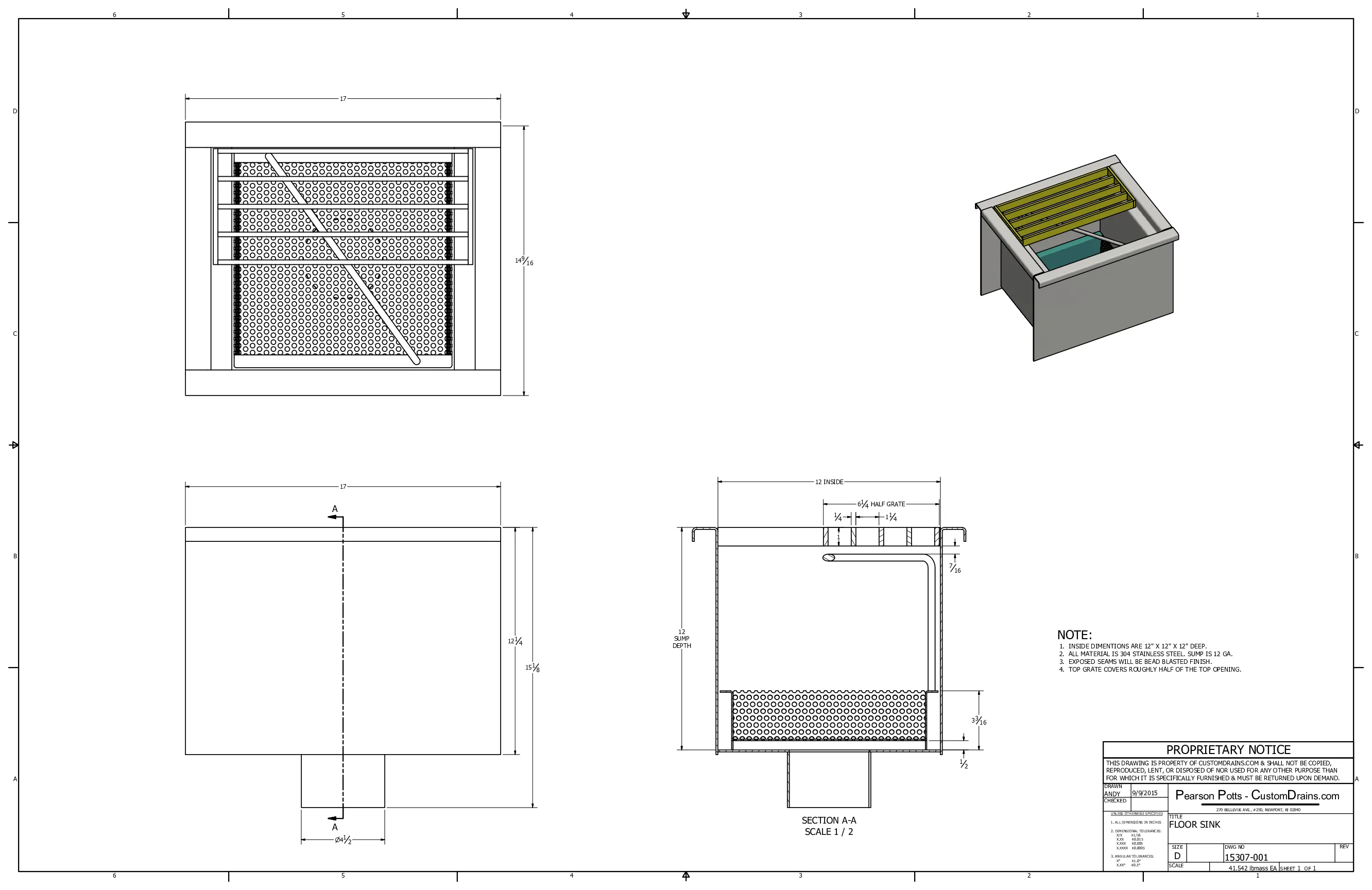

Stainless Floor Sink
With water trap - Bacteria Flushing

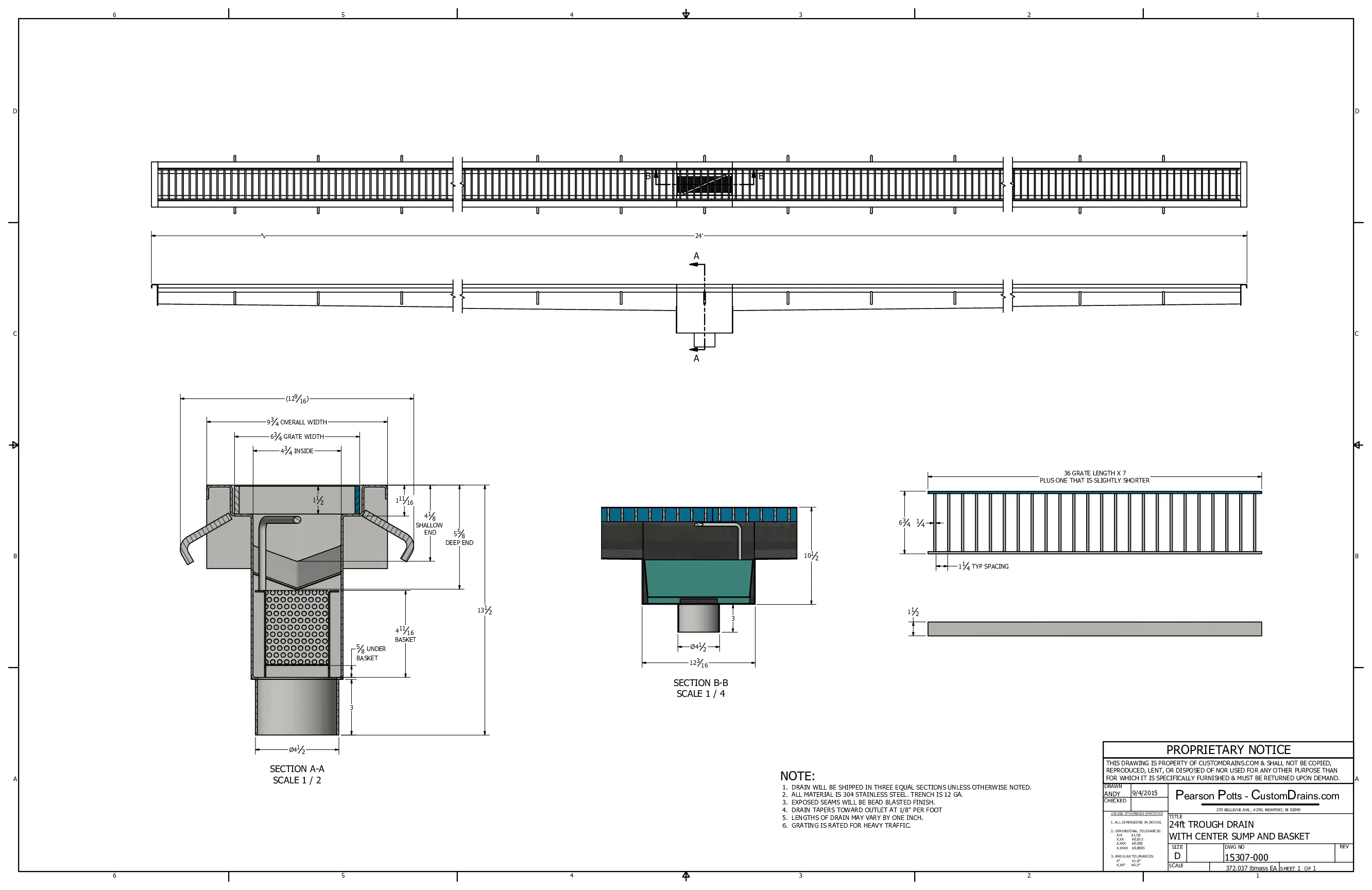

24 Foot Channel Trench w/Bargrate
In-Line Sump with Basket

25'0" Narrow Slot Drain
Center Sump

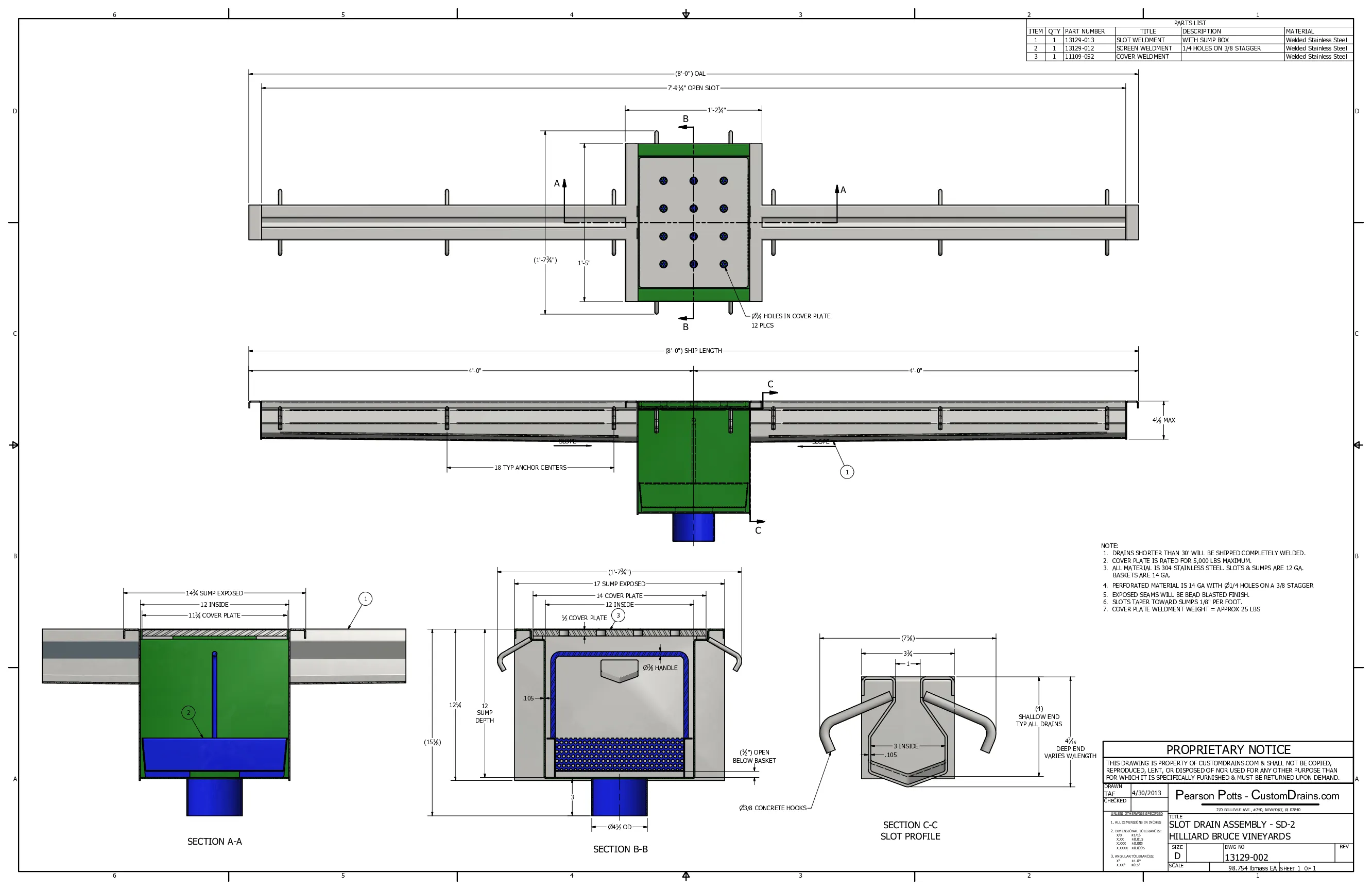

8 Foot Narrow Slot Drain
Center Sump

Trench Bracing for Installation
See how the trench drains are protected for concrete pours.

Propaganda - (aka CustomDrains.com Brochure)
1 Page Brochure
All stainless steel floor drains fabricated by CustomDrains.com have 12 Guage (GA) stainless steel bodies.
12GA is 28.61% thicker than 14GA.

Deprecated: Required parameter $permissions follows optional parameter $path in /home/fxtomuix/customdrains.com/rw_common/plugins/stacks/gridiron-3-vendor/tedivm/stash/src/Stash/Utilities.php on line 216
Thickness Weight Per Area
Gauge in mm
8 0.1719 4.366 7.154 34.928
9 0.1562 3.967 6.5 31.738
10 0.1406 3.571 5.851 28.568
11 0.125 3.175 5.202 25.398
12 0.1094 2.779 4.553 22.229
13 0.0937 2.38 3.899 19.039
14 0.0781 1.984 3.25 15.869
15 0.0703 1.786 2.926 14.284
16 0.0625 1.588 2.601 12.699
17 0.0562 1.427 2.339 11.419
18 0.05 1.27 2.081 10.159

Why follow Design & Product Guidlines

Food, Beverage, Dairy processing facilities adhere to hygienic & sanitary clean standards set by federal, state, and local agencies that provide minimum standards in order to pass inspection to sell food products to the public. To learn more about what rules and regulations companies follow, click on the following resources:

Stainless Steel Resources | Sample Drawings


Custom Fabrication

Let us be the solution to your next problem. With state of the art equipment we can also fabricate food processing equipment, we can do it all.

Shipping Info

  • Large, stocked inventory
  • Same day shipping UPS, FedEx
  • Expedited - Next Day, 2nd Day
  • LTL + Truckloads for large orders

Design

  • In house state of the art CAD drafting capability
  • Latest version of Autodesk Inventor software
  • Wide format color printing/plotting capability


Do it Right, Do it Once, get Stainless Drains!
